Suspended platform

Location：Home > Products > Construction machinery > Suspended platform >

Suspended platform

Release time：2016-03-29

Powered suspended platform is easy to install and operate conveniently. The equipment is ideally used for exterior construction, decoration, cleaning and maintenance of high rise building. And it is also widely used in installation of elevator, construction of reservoir dams, big-size tank and high chimney, cleaning ,inspection and repair of bridge, ship building and repairing.

Model No.			ZLP500	ZLP630	ZLP800
Rated Load Capacity			500KG	630KG	800KG
Rated Lift Speed			9~11m/min	9~11m/min	8~10m/min
Length of Platform			5m	6m	7.5m
Wire Rope Diameter			8.3mm	8.3mm	8.6mm
Hoist	Model		LTD 5	LTD 6.3	LTD 8
	Motor	Power	1.1KW	1.5KW	2.2KW
		Rotate Speed	1420rpm	1420rpm	1420rpm
		Brake Torque	15Nm	15Nm	15Nm

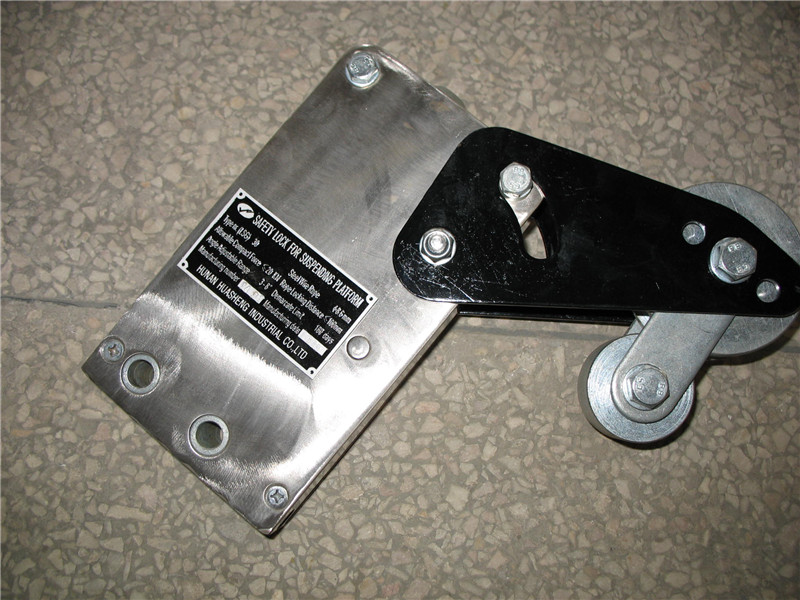

Safety Lock	Model No.		LSB30	LSB30	LSB30
	Permissible Force of Impact		30kN	30kN	30kN
	Fall Distance Permitted		< 100mm	< 100mm	< 100mm
	Tilt Angle Permitted		3°~8°	3°~8°	3°~8°
Suspended mechanism			1.3~1.7m	1.3~1.7m	1.3~1.7m
Counter weight			750kg	900kg	1000kg
